Solar Power Station
This solar power station provides electric power for use at Habitat for Humanity in Wayne County construction sites prior to availability of commercial power. During the early phases of construction activity, it saves the cost of setting a temporary power pole and/or using a portable generator with the associated noise polution, and use of imported oil. The system also serves as a demonstration, model, and reminder to the community that renewable energy can be practical.

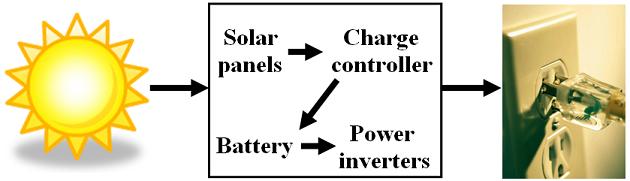

Sunshine in Electricity out
Solar panels: 4 x 180 watts = 720 watts
Battery: 24 volt; 850 amp-hrs
120 volt AC power inverters: 2 x 2.5 kilowatt
Evergreen Solar Model No. ES-180-SL
Voltage at Peak Power
Current at Peak Power
Open Circuit Voltage
Short Circuit Current
Four panels were used, two series pairs in parallel. They were mounted using brackets from Two Seas Metalworks.
Electronics / Electrical Panel
(Charge Controller and Power Inverters)
Outback Power Systems
MX60 Charge Controller
FX2524T 2.5KW Power Inverters
These components were purchased from Evergreen in a pre-wired panel with DC and AC power wiring completed.
The battery was a donation from Rubbermaid, Inc. It had been used with an electric forklift truck.
Manufacturer: C&D Technologies, Inc.
Type: Flooded lead acid
24 volts, 850 amp-hrs.
The trailer is a model U-712TA35-8.5 manufactured by United Trailers and purchased through J&R Trailer Sales in Apple Creek, OH.
Construction Photos and Details
The report provided by Habitat as of September 2008 is that all electricity needed to built the most recently completed house was provided by the Solar Power Station.
Habitat for Humanity
Wayne County Sustainable Energy Network
Agricultural Technical Institute (ATI) of The Ohio State University
J&R Trailer Sales
Apple Creek, OH
(donation of battery)
(system design and component vendor)
